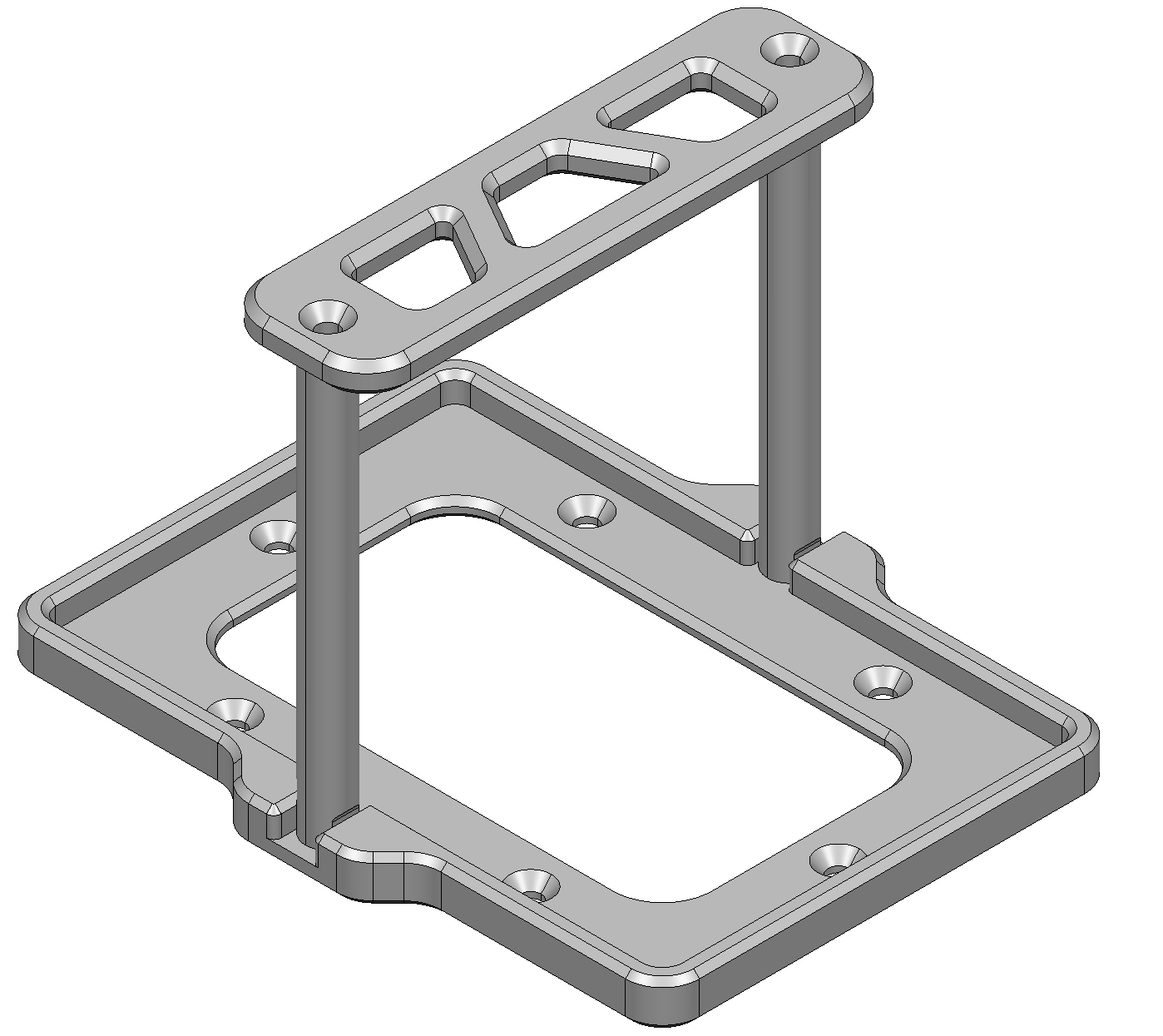

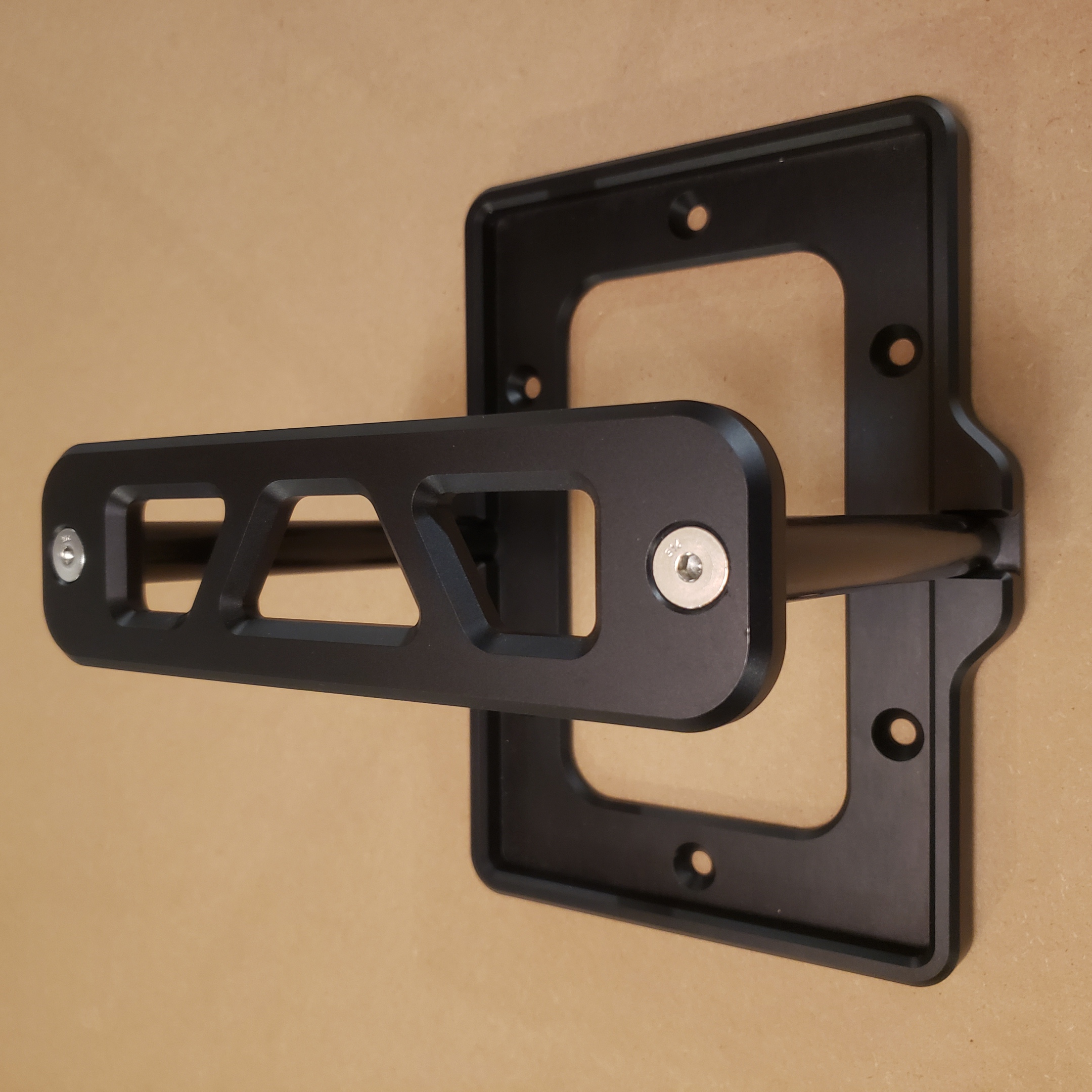

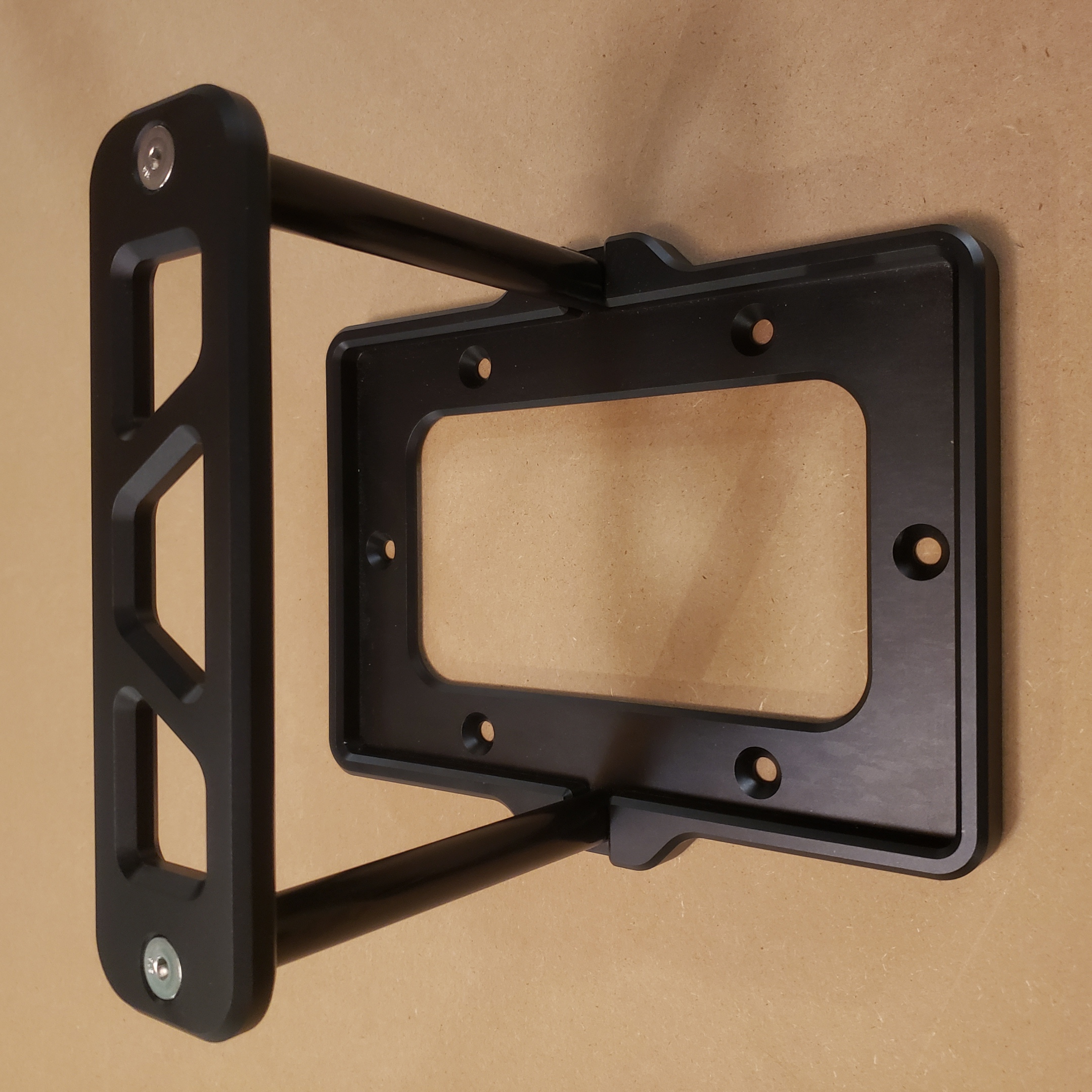

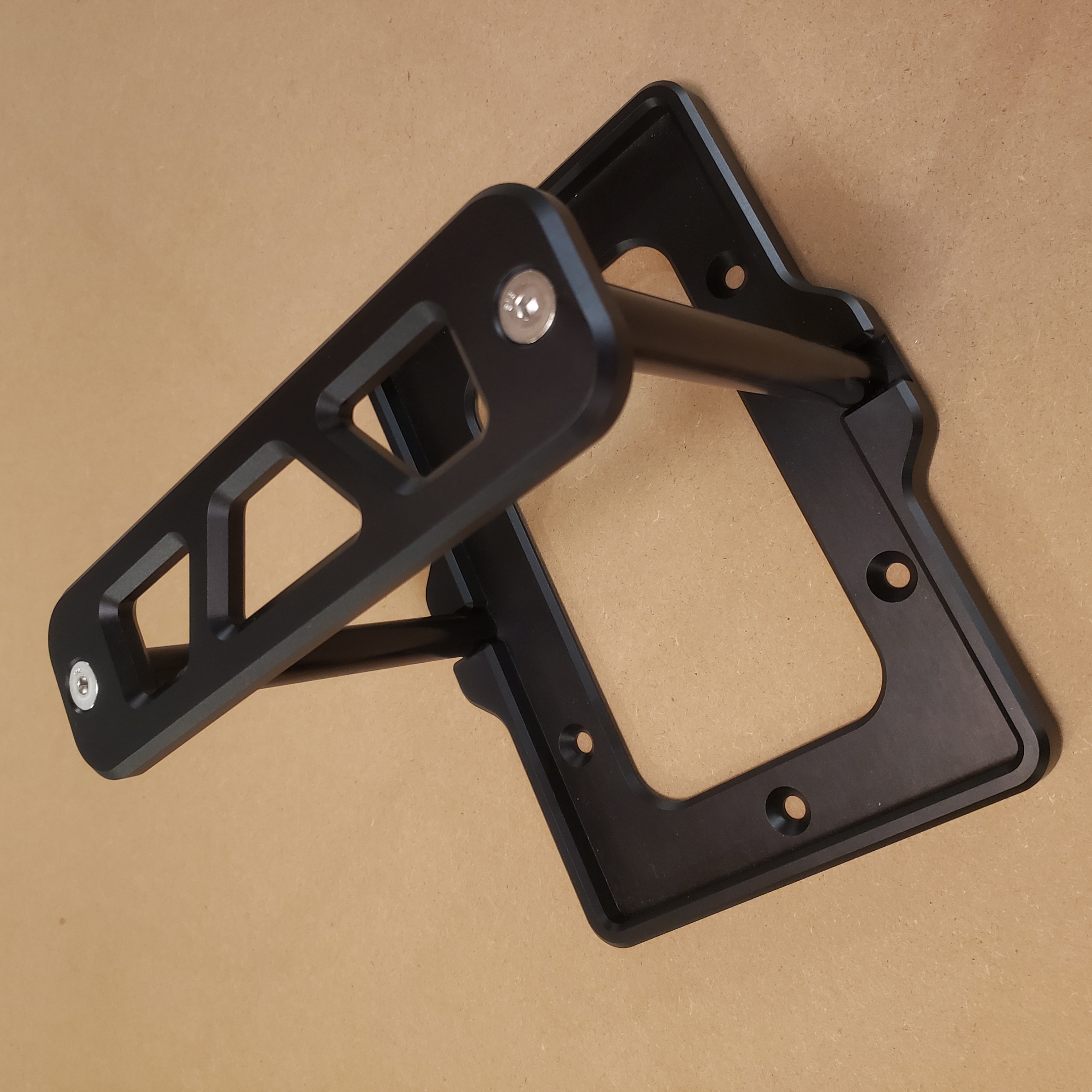

Battery Tray Trapezoid - Group 24
Upright posts are 7" tall
$169.00
Material: 6061 aluminum.
Finish: Blasted black anodized or polished anodized.
Dimensions:
Length: 11.25"
Width: 9.00"
Height: 7.825"
The upright posts on this tray are 7" tall. It was designed around the dimensions of an Odyssey group 24 battery however it will hold any battery with a max size of:
Length: 10.45" (at the base of the base of the battery)
Width: 6.95" (at the base of the base of the battery)
Height: 7.25"
Despite battery classifications (ie: group24, group34) battery sizes are all over the map so please measure your battery to verify fitment before ordering.
Includes: 4 5/16-18 x 1.25" stainless steel flat head hex head bolts required for assembly.
DOES NOT include mounting hardware.
